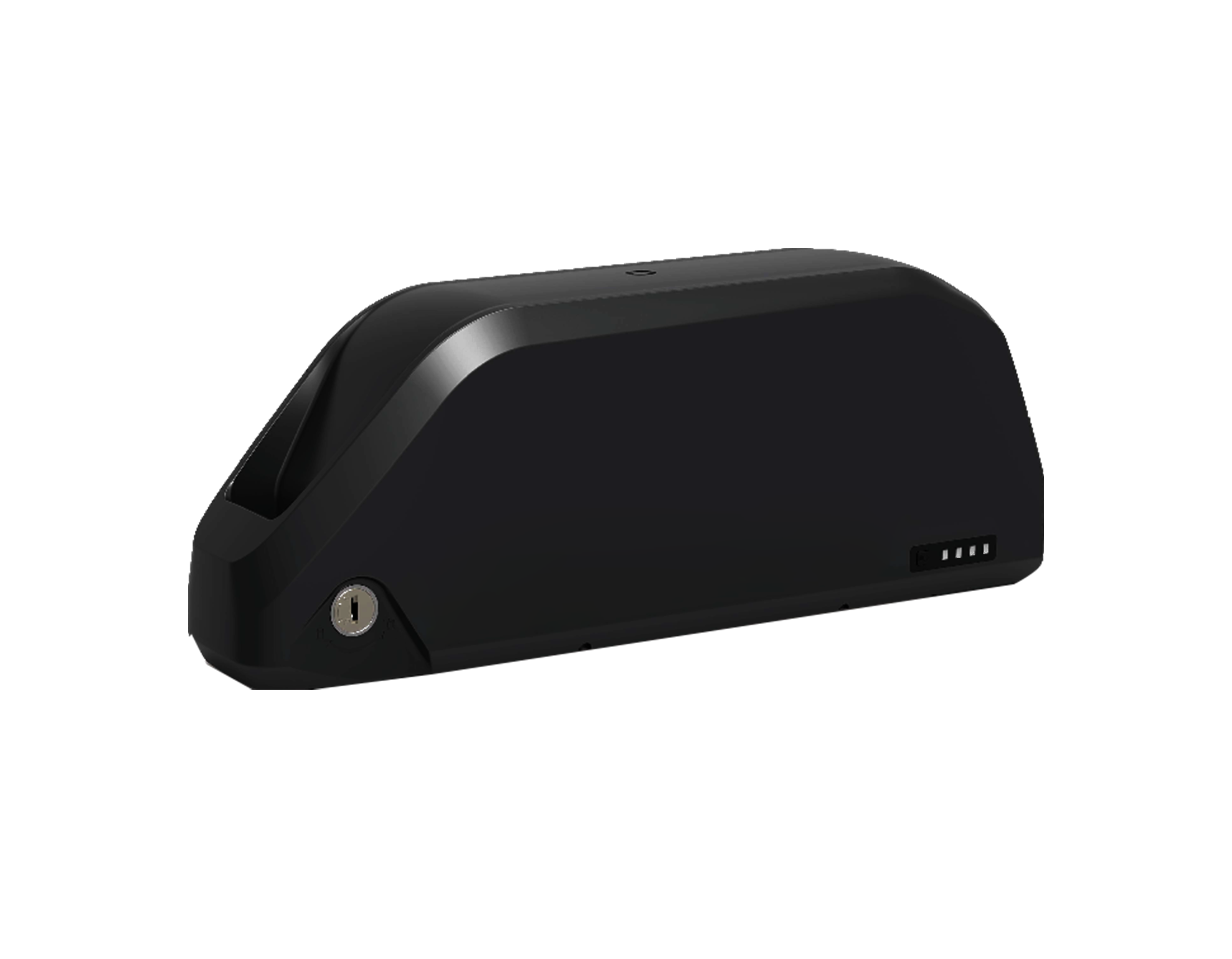

型号编码:RYDBATT
标称电压:36V / 48V
标称容量:10 - 30Ah,100Ah or customized
出厂电压:
执行标准:UL2743,FCC,CE,UN38.3,Rohs,REACH,加州65
工作温度:10~45℃(充电), -20~60℃(放电)
产品规格:
产品重量:
开发定制:
产品描述:1 Product Configuration 产品配置 No. Item 项目 Criteria 标准 Remark 备注 1 电 芯 Lithium-ionBatteryCell TNL-ITR18650-2600P 2 PCM 自制保护板:PCM-F46.8V20-80A-NTC-ND- 66x52x15-(RYD-13S-088)-带二次保护-加工 BOM(2) 3
No. | Item 项目 | Criteria 标准 | Remark 备注 |
1 | 电 芯 Lithium-ion Battery Cell | TNL-ITR18650-2600P | |
2 | PCM |
自制保护板:PCM-F46.8V 20-80A-NTC-ND- 66x52x15-(RYD-13S-088)-带二次保护-加工 BOM(2) |
|
3 | Connector |
充电:DC-5521-22AWG 硅胶线 放电:4pin 插头-14AWG 硅胶线 |
N O |
电池类型 Battery type |

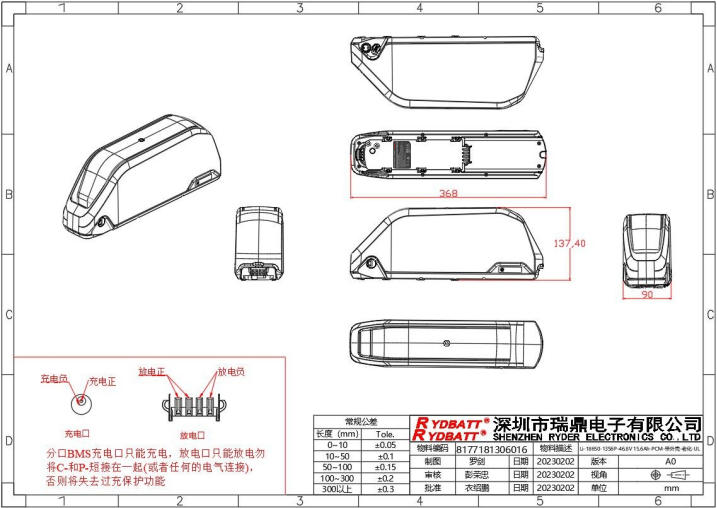

电池尺寸 (mm )Dimensions D*H(max) |
导线长度(mm)Lead exposure L |
端子头方向Terminal head direction |
浸锡长度 Immersion tin size |
1 |
锂离子圆柱 Li-ion Cylindrical |
368±1*90±1*137.4±1mm | / | / | / |
1.1 PCM 参数
项目 Project | 详细内容Details | 标准 Standard |
过充保护 Over charge Protection |
过充电检测电压 Over charge detection voltage | 4.250±0.030V |
检测延迟时间 Detection delay time | 1.5±0.5S | |
过充电解除电压 Over charge release voltage | 4.150±0.050V | |
过放电保护 Over discharge protection |
过放电检测电压 Over discharge detection voltage | 2.70±0.080V |
检测延迟时间 Detection delay time | 1.0±0.3S | |
过放电解除电压 Over discharge release voltage | 3.000±0.100V | |
充电过流 Charge Over-Current |
充电过流保护电流Over-Current charge protection | 4.2±1.0A |
充电过流保护延迟时间 Over-Current charge protection delay time | 1±0.5S | |
充电过流保护解除条件 Discharge condition of charge overcurrent protection | 移除充电器Remove charger | |
最大充电过流Maximum charging overcurrent | ≤3.0A | |
放电过流 Discharge Over-Current |
放电过流保护 1Over-Current discharge protection 1 (Only in normal mode) | 40±4A |
放电过流保护 1 延迟 Over-Current protection 1 delay time | 1±0.5S | |
放电过流保护 2 Over-Current discharge protection 2 (Only in normal mode) | 80±8A | |
放电过流保护 2 延迟 Over-Current protection 2 delay time | 100mS±5mS | |
放电过流保护 1/2/3 释放 Over-Current protection 1/2/3 release |
断开负载 disconnecting the load |
|
最大持续放电电流Maximum continuous discharge current | ≤25A@10min | |
短路保护 Short circuit protection |
放电短路保护 Short circuit discharge protection | >160A |
放电短路保护延 Short circuit protection delay time 迟 | 250uS±50uS | |
放电短路保护释放Short circuit protection release | 移除负载 removing load | |
温度保护 Temperature protection |
充电高温保护温度Charging high temperature protection temperature | 50±4℃ |
充电高温保护恢复温度 Charging high temperature protection to restore temperature |
47±5℃ |
|
充电低温保护 Charge low temperature protection | 0±5℃ | |
充电低温恢复 Charge low temperature protection release | 5±5℃ | |
放电高温保护温度Discharge high temperature protection temperature | 70±5℃ | |
放电高温保护恢复温度 Discharge high temperature protection restores temperature |
55±5℃ |
|
内阻 Internal resistance PCB | 主回路导通电阻 On resistance of main circuit | ≤30mΩ |
电流消耗 Current consumption |
关机模式(未开启输出) Shutdown mode (output is not turned on) |
35μA±5uA |
弱电开关 switch |
有/充电时需关闭弱电开关 Turn off the weak current switch when charging |
|
NTC | 10K(R= 10K±1% @25℃ B= 3435K±1% @25/85℃) | |
仪器电压误差 Instrument voltage error |
±0.005V |
